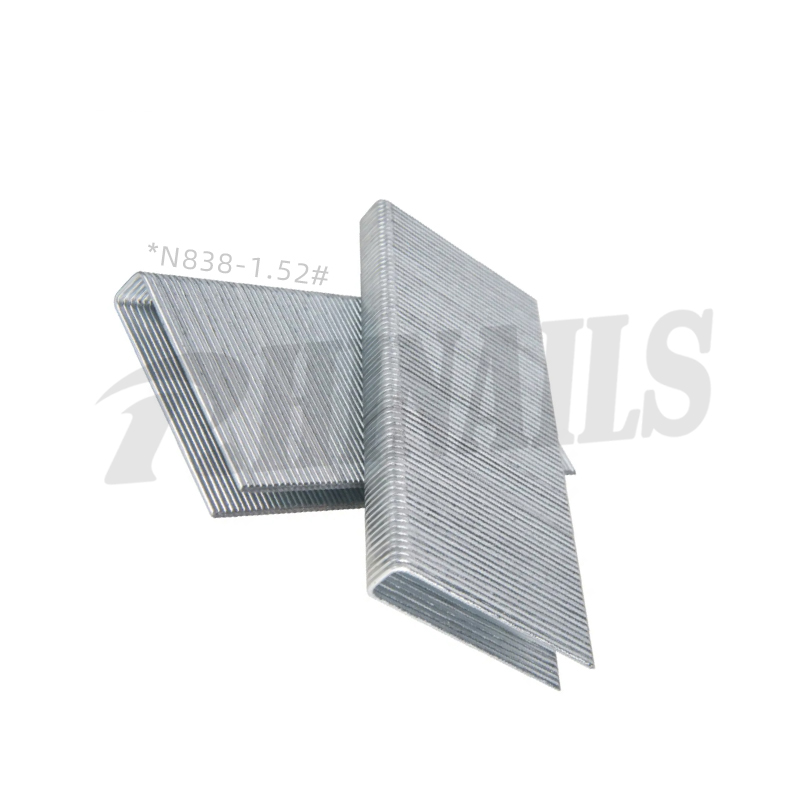

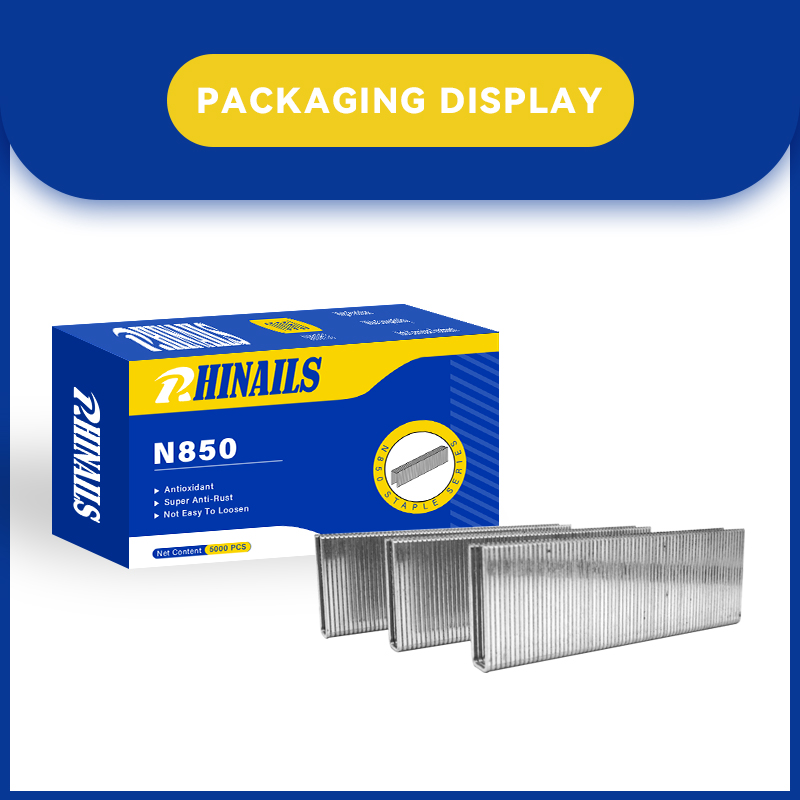

N Series Pneumatic Staples
Rhinails

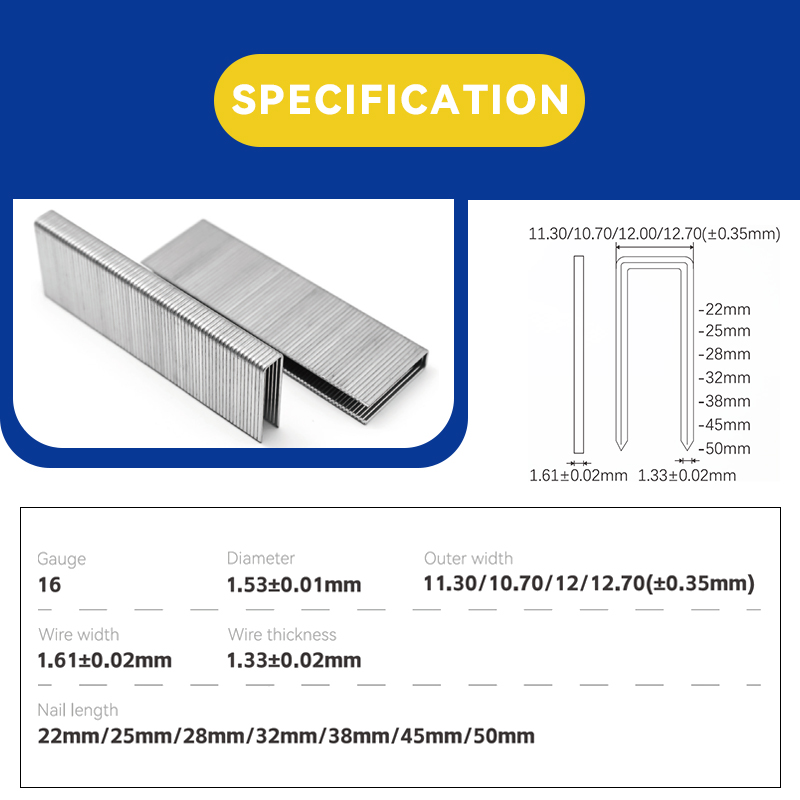

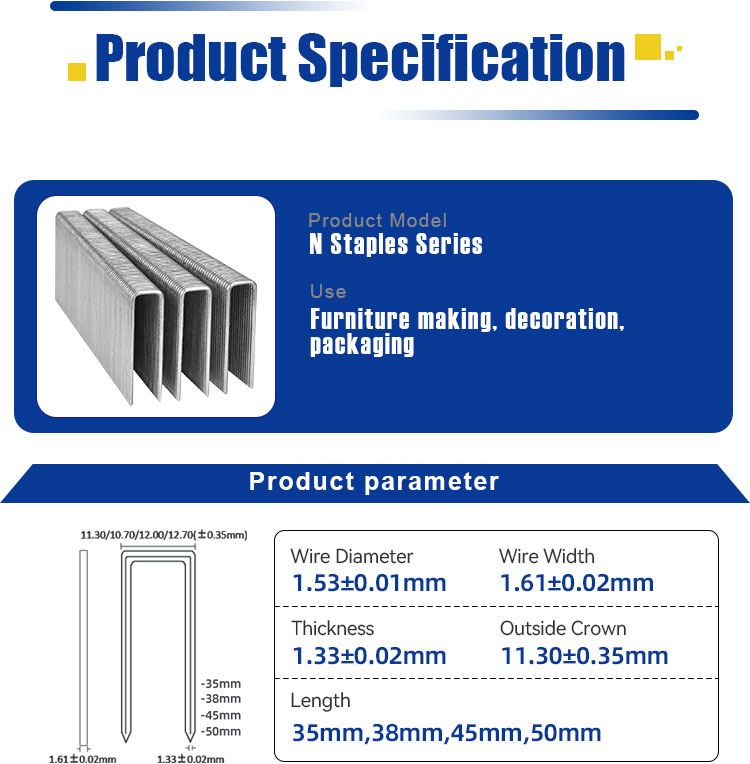

Rhinails N-Series 16-Gauge Pneumatic Crown Staples feature an 11.30±0.35mm crown, 1.33±0.02mm thickness, and 1.61±0.02mm width, available in lengths of 22mm, 25mm, 28mm, 32mm, 38mm, 45mm, and 50mm. The wider crown and thicker 16-gauge wire deliver superior holding power for structural applications where joint strength is critical.
Need bulk pricing for N-Series Staples? Send Inquiry Now

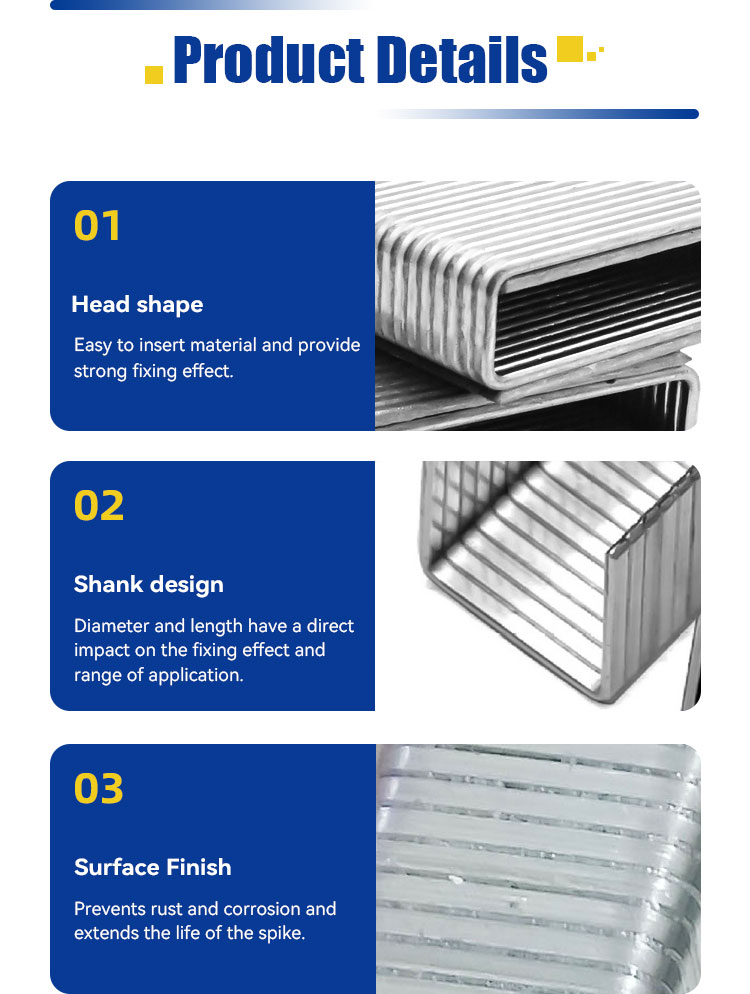

Wide Crown for Maximum Holding Power: The 11.30mm crown distributes fastening force across a larger surface area than narrow-crown staples, making N-Series staples ideal for sub-floor installation, sheathing, fence board attachment, and heavy-duty furniture framing. The 16-gauge wire (1.61mm width) provides deep penetration and strong resistance to pull-out in both softwood and hardwood substrates.
Want the full Rhinails catalog for your next project?
Download Catalog (PDF) →
Galvanized Steel Construction: Manufactured from high-quality galvanized iron wire, N-Series staples resist corrosion in indoor and semi-exposed outdoor environments. For permanent outdoor fencing and agricultural applications, hot-dip galvanized options are available upon request.
| Series | Crown Width | Gauge | Best For |
|---|---|---|---|
| 80 Series | 12.75mm | 21 | Furniture assembly, auto upholstery, veneer fixing |
| 4J Series | 5.05mm | 20 | Pallet assembly, fencing, general woodworking |
| 10J Series | 11.1mm | 20 | Heavy-duty pallets, crates, furniture frames, auto interiors |
| 90(K) Series | 5.80mm | 18 | Fine finish carpentry, cabinetry, trim, craft work |
| N-Series | 11.30mm | 16 | Sub-flooring, sheathing, fencing, heavy construction |
N-Series staples are the heaviest-duty standard crown staple in the Rhinails lineup. Their 16-gauge wire and 11.30mm crown make them the right choice for applications that demand maximum pull-out resistance: sub-floor installation, wall sheathing, fence board attachment, roofing underlayment, crate and pallet reinforcement, and heavy furniture frame construction. The extended length range (22-50mm) enables deep penetration into thick substrates where lighter staples would fail.
Q: What pneumatic staplers are compatible with N-Series staples?
A: N-Series (16-gauge, 11.30mm crown) staples fit all standard 16-gauge medium-crown pneumatic staplers. Contact us with your stapler model number — we will confirm compatibility and recommend the right staple size for your tool.
Q: What is the minimum order quantity (MOQ)?
A: MOQ depends on model and packaging. Standard packing is approximately 2000-3000 pieces per box. Please send an inquiry with your required size and quantity for a tailored quotation.
Q: What is the typical lead time?
A: Standard production is 15-25 days. Rush orders can be accommodated — specify your deadline when inquiring.
Q: Can I order hot-dip galvanized N-Series staples for permanent outdoor use?
A: Yes. Standard N-Series staples are electro-galvanized. Hot-dip galvanized options are available for permanent outdoor fencing, agricultural, and marine applications. Specify your finish preference when ordering.
Q: Do you offer OEM packaging or private labeling?
A: Yes. Rhinails supports custom box labeling, branded packaging, and OEM specifications for bulk orders.
