Choosing The Right Pneumatic Nail Gun: A Complete Guide for Every Project

Why Choosing the Right Nail Gun Matters

Pneumatic nail guns use air compressors to drive nails into materials like wood, concrete, or metal—perfect for DIY, construction, or factory work. They save time, but picking the wrong one? That's a recipe for trouble: short nails won't hold, long ones can damage stuff or hurt you.

At Rhinails Fasteners, we've got your back. Let's break down the main types. so you can nail your next project.

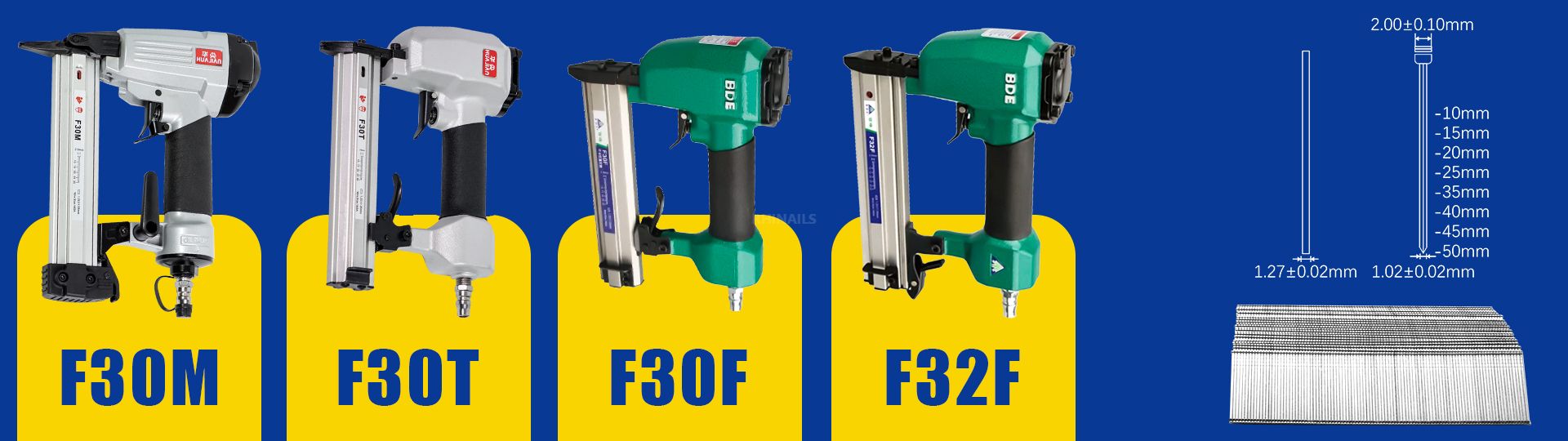

 F Series Pneumatic Brad Nail Guns

• Nail Details: Uses F brad nails (glued together in strips). They're not round—width is about 1.25mm, thickness 1.0mm, with heads around 2.0mm. Lengths range from 10mm to 50mm (e.g., 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm).

• Best For: Solid wood or panel fixes—like furniture building or trim work. Choose nail length based on material thickness: too short, and it won't hold; too long, and you risk puncturing through (ouch!).

• Pro Tip from Rhinails: Great for home renos where you need quick, reliable joins without overkill.

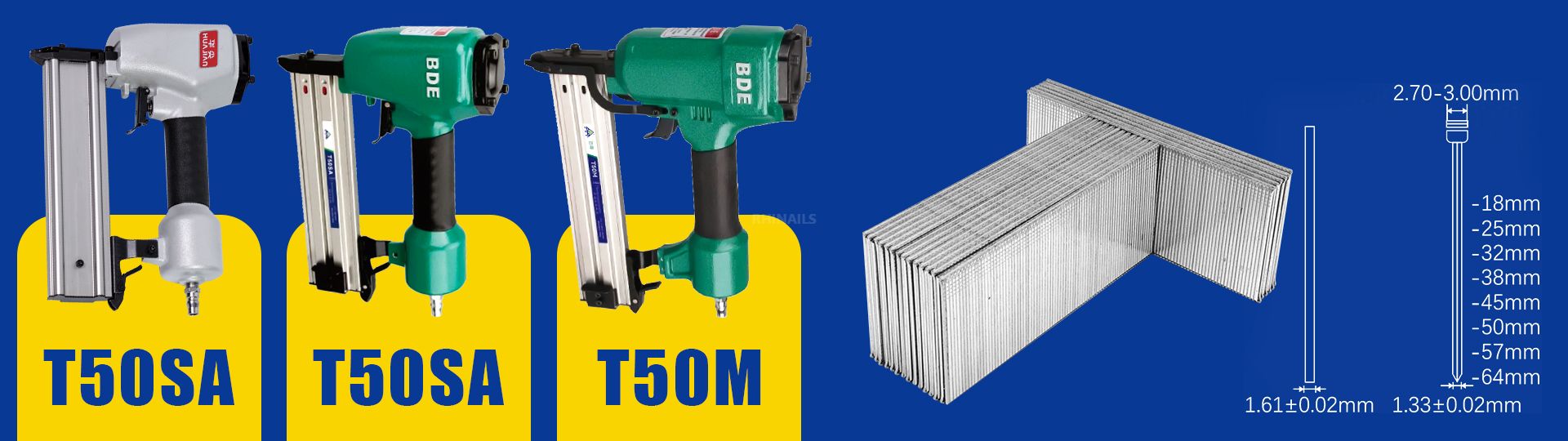

 T Series Pneumatic Brad Nail Guns (Focus on T50)

• Nail Details: Steps up with T brad nails—wider and thicker than F (width ~1.6mm, thickness ~1.3mm, heads 2.7-3.0mm). Common lengths: 18mm, 25mm, 32mm, 35mm, 45mm, 50mm, 64mm.

• Best For: When F series struggles! Ideal for hardwoods, thin iron sheets (under 1mm), or crumbly walls. Need to drive into something stubborn? T50's your buddy. But for super-hard stuff like concrete or metal plates, skip to ST steel nails.

• Safety Note: Always test on scrap material first—over-penetration can be dangerous.

 ST Series Pneumatic Brad Nail Guns

• Nail Details: Fires ST steel nails—strongest of the bunch (diameter ~2.2mm, heads ~6.0mm). Lengths include 18mm, 25mm, 32mm, 38mm, 45mm, 50mm, 57mm, 64mm (ST38 and ST64 are popular).


• Best For: Tough customers like hardwood, concrete, bricks, or even thin steel/aluminum plates. But be careful: nailing into metal can cause kickback or flying debris, so wear goggles!

• Rhinails Advice: Perfect for outdoor projects or industrial jobs—just match nail length to avoid jams or accidents.




 Pneumatic Mini Brad Nail Guns (Brad Nailers, e.g., P625 Model)

• Nail Details: Super-thin nails—only 0.63mm diameter! Models like P625 handle lengths from 12mm to 25mm (e.g., 12mm, 15mm, 18mm, 20mm, 22mm, 25mm).

• Best For: Delicate work, like securing sofa fabric or edging where you don’t want big holes. If it’s soft and thin, this gun is golden.

• Why It Rocks: Minimizes splitting in materials—ideal for finishing touches in carpentry.

 Pneumaitc Stapler

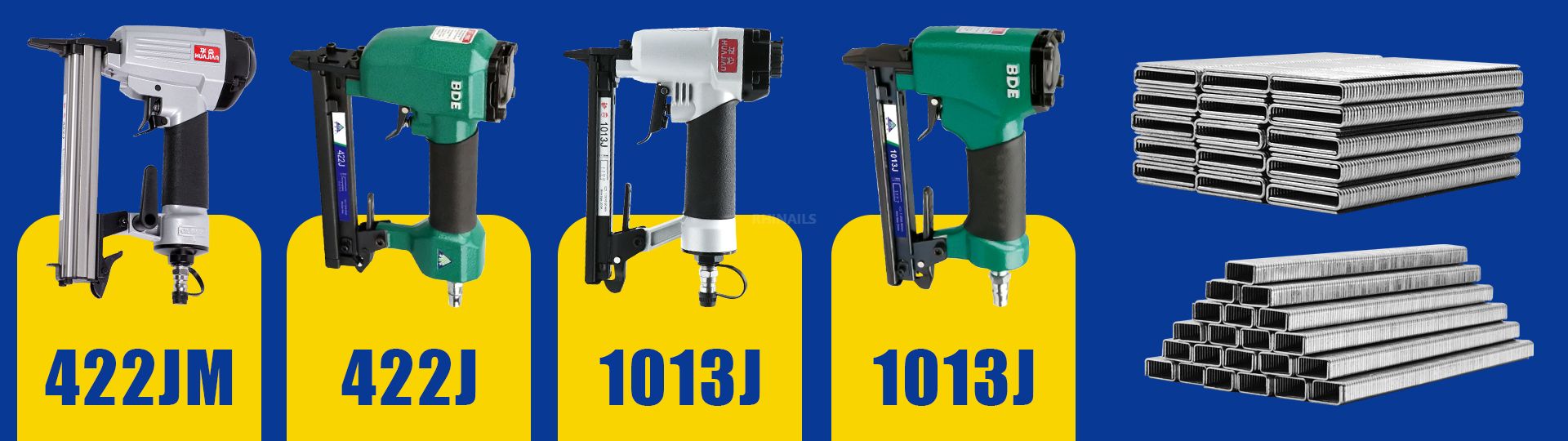

• Types and Nails: Covers models like 10J, 10F, 4J, 4K, N, or 80 series. Each uses different staples: e.g., 1013J pneumatic stapler for 11mm-wide staples (6-13mm long), 413J pneumatic stapler for 5mm-wide staples (6-13mm long).

  Different series correspond to different staples, with data for some models as follows:


  Series	Gauge (Wire Thickness)	Shoulder Width	Leg Length Range	Best For
  10J	20 Gauge (Ø0.91mm)	11.2mm	4-22mm	General construction
  4J	20 Gauge (Ø0.91mm)	5.05mm	4-22mm	Hidden fastening
  10F	22 Gauge (Ø0.71mm)	11.2mm	4-13mm	Thin/delicate materials
  80	21 Gauge (Ø0.81mm)	12.75mm	4-16mm	Outdoor/high-stress zones

• Best For: Non-wood materials—think leather, sofa frames, or panel fixes. Versatile for upholstery or light assembly.

  Quick Tip: Pick staples that fit your gun model to avoid jams—check compatibility before buying.

 Final Thoughts and Next Steps

Got a project? Match your nail gun to your material: F for wood, T50 for hardwoods, ST for concrete, Mini for soft stuff, and staples for fabrics and furniture. At Rhinails Fasteners, we're all about making your work safer and smarter. Need more?
