Views: 156242 Author: Rhinails-Z Publish Time: 2025-09-02 Origin: Site
Real-World Case Studies (Field Data 2025):
| Failure Type | Metal Studs | Wood Studs |
|---|---|---|

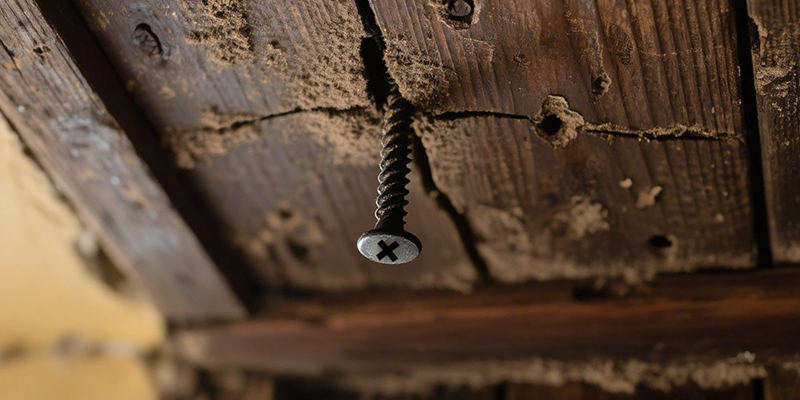

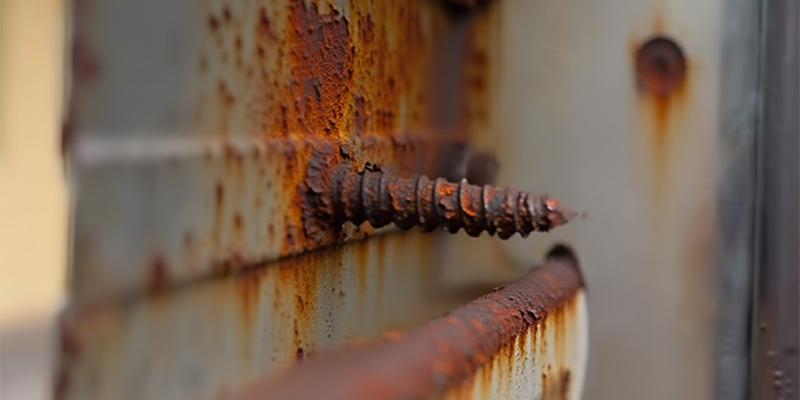

Corrosion Fracture | Electrochemical rust at coating defects | Tannic acid corrosion from oak/mahogany |
Thread Stripping | 38% torque reduction after 5yrs (ASTM F1575) | Wood fiber splitting at >60% humidity |
Cost Alert: North American rework costs due to screw mismatch exceed $42M/year (NFBA Report). | ||
Chapter 2: Decision Matrix – Metal vs Wood Stud Screw Specifications
Tested per ASTM F547 & EN 14592
| Parameter | Metal Stud Screws (Fine Thread) | Wood Stud Screws (Coarse Thread) | Fatal Error |
|---|---|---|---|
Thread Profile | 30° helix angle, 24 TPI | 45° helix angle, 16 TPI | Mixed use → 40% grip loss |
Tensile Strength | 80,000 PSI min (Grade 1022 steel) | 60,000 PSI min (Case-hardened) | Over-torque deforms studs |
Coating Technology | ZH-Coating (Zn-Al composite) | Class 3 Galvanization (Zinc phosphate) | Coastal corrosion <3 years |
Point Design | Self-drilling Type 17 point (No pilot hole) | Sharp needle point (Type B) | Pre-drilling needed for stainless |
Salt Spray Resistance | 1,000hrs (ASTM B117) | 720hrs (ISO 9227) | Failures in marine environments |
Pro Tip: For Chinese GB/T projects, use coarse-thread screws with ≤0.6mm pitch when wood moisture >18% (GB 50005 compliance).

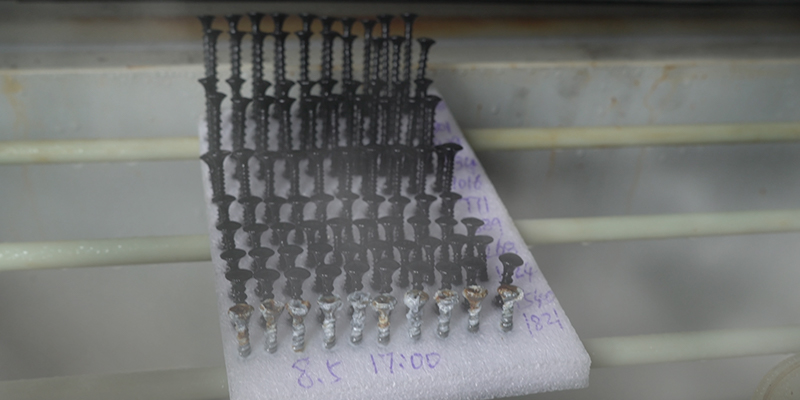

Accelerated Testing Protocol (Q-Fog CCT Chamber, 35°C/85%RH)
Methodology:
- Samples: ZH-coated vs Galvanized screws (10 sets each)
- Cycle: 240h → 480h → 1000h inspections
- Criteria: Red rust coverage per ASTM D610
Results Visualization:
▲ ZH-coating shows 73% less corrosion at 480hrs – Critical for projects within 5km of coastlines
Optimized Settings for Collated Nail Guns:
| Parameter | Metal Studs | Wood Studs |
|---|---|---|
Air Pressure | 70-90 PSI (Precision torque mode) | 60-80 PSI (Anti-split mode) |
Nose Piece | Magnetic guide tip (Senco DSV-202) | Polymer friction tip (DEWALT DC618) |
Error Codes | ERR05: Screw hardness >32 HRC | ERR12: Resin buildup in magazine |
Winter Operation: Add low-temperature anti-gel fluid (Dow Corning DF-100) below -5°C. | ||
| Standard | United States (ASTM) | European Union (EN) | China (GB) |
|---|---|---|---|
Diameter | #6 (3.5mm), #7 (4.2mm) | 3.8mm (EN 14566) | 3.5mm, 4.2mm (GB/T 15856) |
Coating Thickness | Min 0.8 mil (ASTM B633) | Min 8μm (EN ISO 1461) | Min 6μm (GB/T 9799) |
Lead Content | <100ppm (CPSC 16 CFR 1303) | <0.1% (REACH Annex XVII) | <90ppm (GB 24613) |
1. Choose the Right Drywall Screws
[ ▼ Base Material: Metal/Wood ]
[ ▼ Environmental Humidity: Low (<50%)/High (>80%) ]
[ ▼ Seismic Requirement: Yes/No ]
→ OUTPUT: Recommended screw type + ASTM/EN standard
2. Exclusive Resources:
"Rhinails Fasteners Catalogue"
▶️ "Real video of the screw test"
