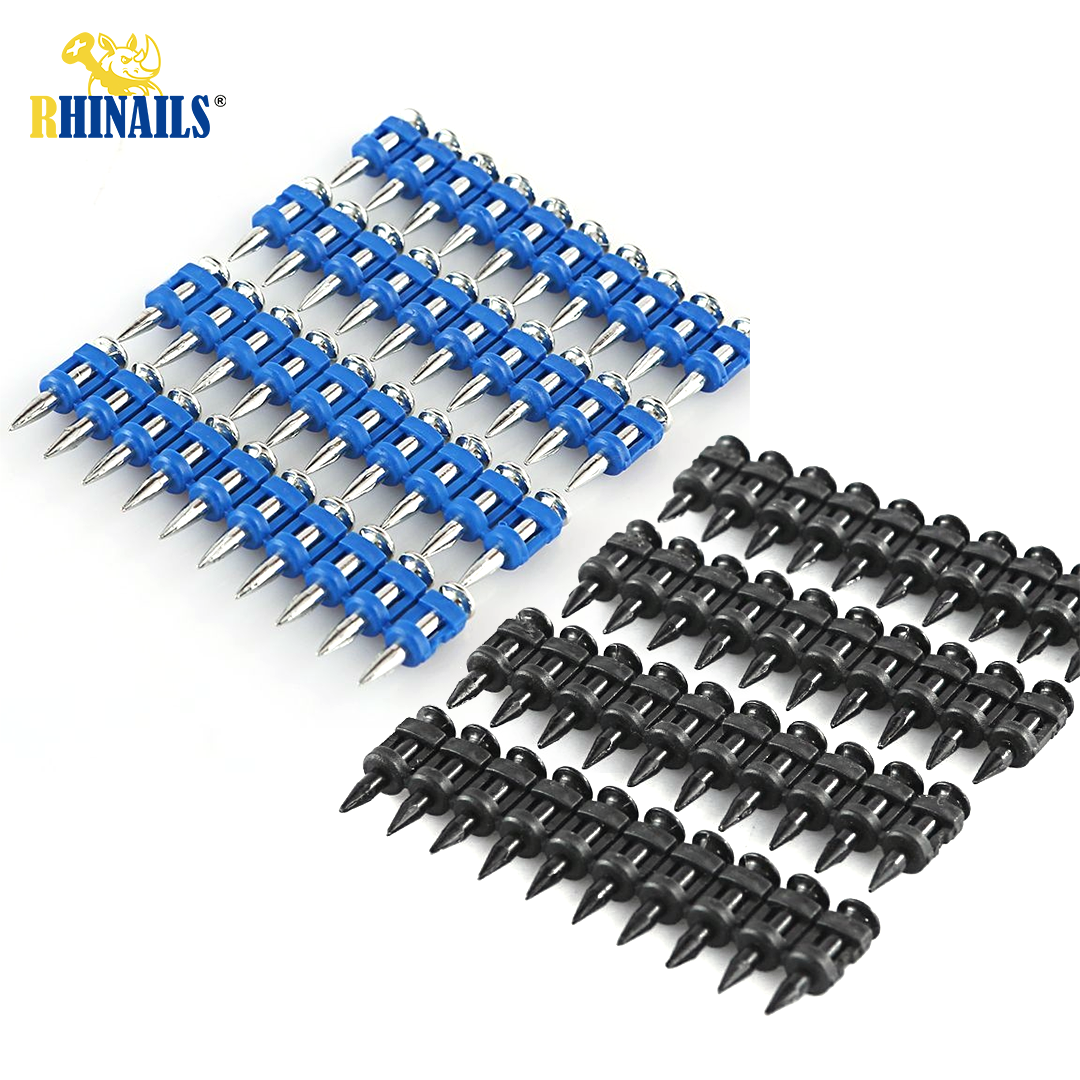

Collated Concrete Nails
Rhinails
Rhinails Collated Gas Drive Pins are ballistic-grade steel fasteners in 10-piece plastic strips for rapid direct fixing into concrete, masonry, and steel. Available in 19mm to 38mm lengths with +/-0.02mm diameter tolerance. They penetrate up to 3mm structural steel without pre-drilling, built for MEP conduit saddles, ceiling grids, and cable trays.
Looking for Factory-Direct Collated Gas Drive Pins? Wholesale pricing from 19mm to 38mm. Fast bulk delivery and custom branding. |
Fast direct fastening for high-volume commercial installations:
Instant Penetration: Drives directly into concrete and 3mm steel plates with zero pre-drilling.
Continuous 10-Shot Firing: Engineered plastic strip feeds smoothly without jamming or premature detachment.
Dual Anti-Rust Coating: Long-term corrosion protection in humid ceiling plenums and covered outdoor assemblies.
Extreme Accuracy: Tight +/-0.02mm diameter tolerance prevents tool misfires and piston wear.
Product Type | Plastic Collated Gas Drive Pins |
Collation | 10 Nails / Strip (Durable Blue Plastic Strip) |

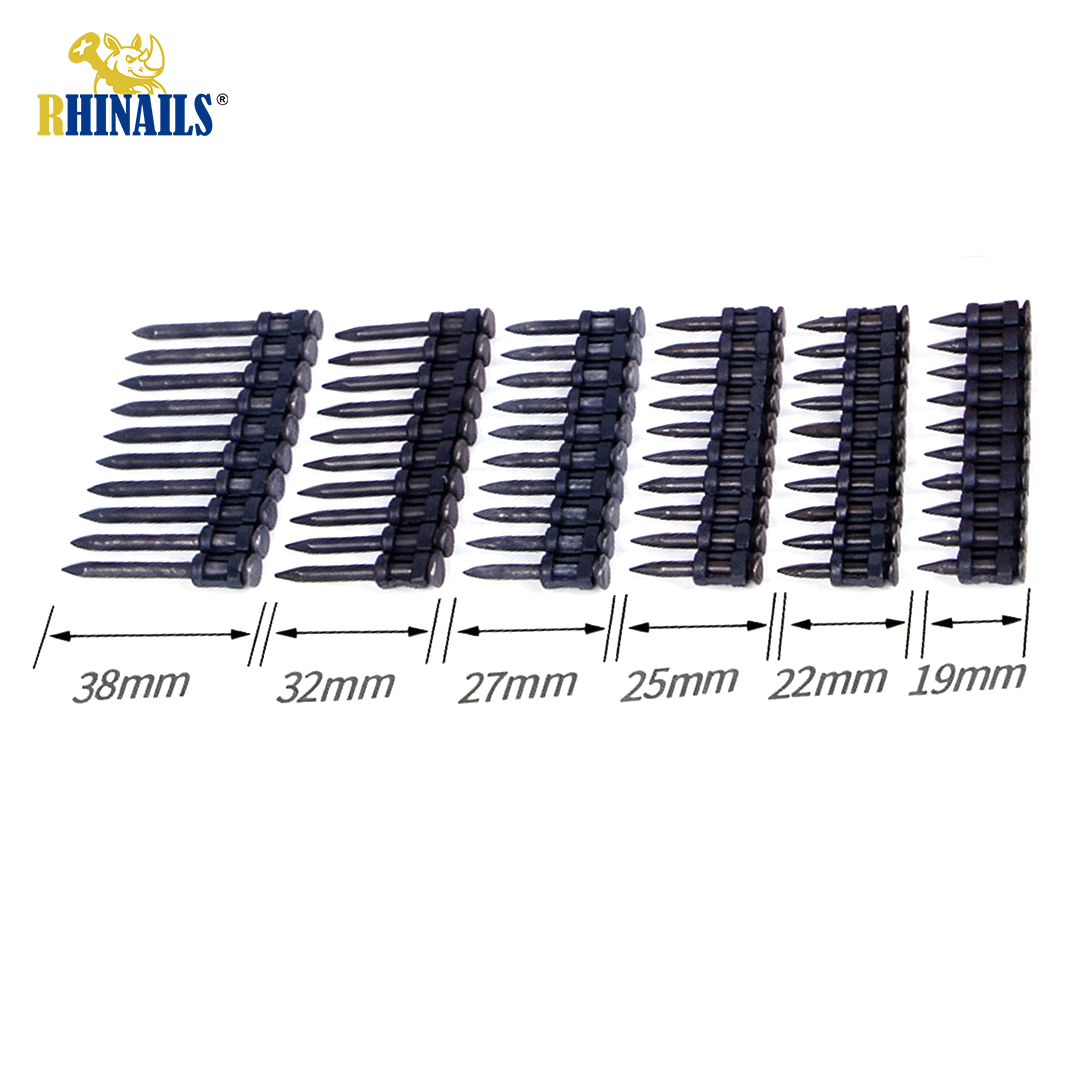

Length Options | 19mm, 22mm, 25mm, 27mm, 32mm, 38mm |
Tolerance | Wire Diameter Controlled Within +/-0.02mm |
Point Design | Ballistic Bullet Point for Maximum Piercing |
Steel Capacity | Penetrates 3mm Structural Steel Without Drilling |
Surface Finish | Dual Anti-Corrosion Treatment (Black / Zinc) |
Packaging | 1000 pcs / Box, 10 Boxes / Master Carton (10000 pcs) |

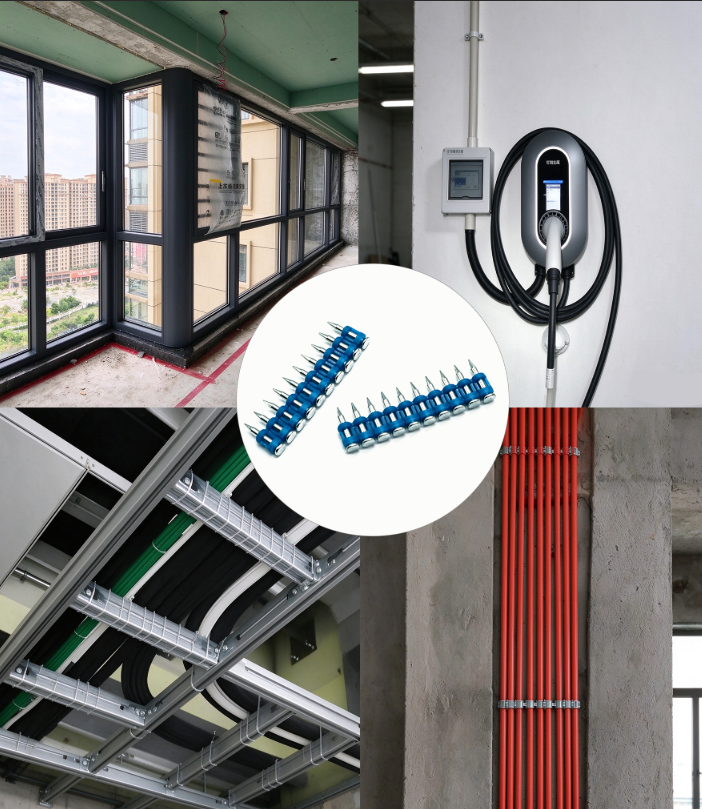

Main Uses | Ceiling Hangers, Cable Trays, Pipe Clamps, Drywall Tracks |
Tool Match | Standard Gas Actuated & Battery Concrete Nailers |
Download Complete Fasteners Catalog Full dimensions, pullout data, and tool compatibility charts. |
Compared with manual drilling, drop-in anchors, and loose powder pins:
5x Faster Installation: One trigger pull sets the anchor. No drilling, no dust cleaning.
Reliable Holding Power: Ballistic bullet point compresses concrete for high pullout load.
Zero Pre-Drilling on Steel: Pierces 3mm steel brackets and structural flanges directly.
Tear-Resistant Strips: Plastic collation strip will not break or drop pins in tool pouches.
Cleaner Work Environment: Virtually zero silica dust on job sites, safer for indoor retrofits.
Hardened Core: Continuous mesh-belt heat treatment prevents pin bending on hard aggregate.
Dual Protective Barrier: Advanced phosphating and zinc galvanizing block rust in damp plenums.
Rigid Strip Polymer: Resists cold cracking down to -10 degrees Celsius and heat deformation up to 45 degrees Celsius.
Model | Length | Collation | Primary Use |
RNDP-19 | 19mm (3/4 inch) | 10 pcs / strip | Drywall steel tracks to solid concrete; brackets to 2-3mm steel |
RNDP-22 | 22mm (7/8 inch) | 10 pcs / strip | Electrical pipe clips, cable tray brackets, light ceiling hangers |
RNDP-25 | 25mm (1 inch) | 10 pcs / strip | Standard electrical conduit saddles, junction box brackets |
RNDP-27 | 27mm (1-1/16 inch) | 10 pcs / strip | Suspended ceiling main channels, window sub-frame connectors |
RNDP-32 | 32mm (1-1/4 inch) | 10 pcs / strip | Timber battens to masonry, heavy fire conduit clamps |
RNDP-38 | 38mm (1-1/2 inch) | 10 pcs / strip | Thick wood-to-concrete fixtures, exterior insulation brackets |
Request Factory-Direct Quotation Container bulk discounts and custom OEM packaging available. Fast 15-25 days lead time. |
Q: Are these pins compatible with standard gas nailers?A: Yes. Fits all standard 10-shot gas nailer magazines, including Powers, Ramset, Spit Pulsa, Hilti GX adapters, and standard commercial gas guns. |
Q: Can they penetrate 3mm steel without pre-drilling?A: Yes. High-hardness ballistic points pierce structural steel up to 3mm thick directly in a single shot. |
Q: What is the packaging and MOQ?A: 1000 pcs/box (100 strips), 10 boxes/master carton (10000 pcs). Standard neutral MOQ is 50 cartons; custom OEM box MOQ is 100 cartons. |
Q: Will the plastic strip jam the gun or shatter?A: No. High-tenacity polymer strips shear away cleanly during firing without leaving residue in the nosepiece. |
Q: Can you supply matching gas fuel cells?A: Yes. Matched high-combustion gas fuel cells are available for full container load shipments. |
